Checklist of the Collembola: Key to the genera of Hypogastruridae

This key is still under construction. Note that missing figures will be provided as soon as possible. Currently, the key is in the feasibility study phase to find out how to integrate in the checklist in a modular way a key that has been generated with DELTA.

Rationale

The rationale for taxa used and not used as well as subtaxonomic classification for some taxa is to be provided.

Key

Note that no distinction between subtaxa and taxa is made in the key.


1(0).   Head with 8 + 8 eyes........................................ 2
        Head with fewer than 8 + 8 eyes............................ 18

2(1).   Apical organ of third antennal segment with 2 or no papillae..
           ......................................................... 3
        Apical organ of third antennal segment with 5 papillae
          (fig.1)............................................. Biscoia


Fig.1.

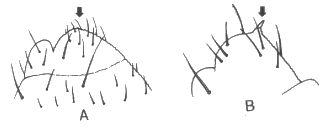

3(2).   Anal spines absent (fig.2a)................................. 4
        Anal spines present, at least small (fig.2b)................ 5


Fig.2.

4(3).   First thoracic segment with 1 + 1 setae........ Ecuadogastrura
        First thoracic segment with 3 + 3 setae.......... Choreutinula

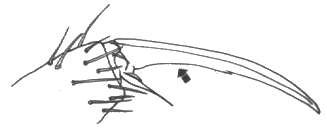

5(3).   Anal spines 2 or 3.......................................... 6
        Anal spines 8 (fig.3).......................... Octoacanthella


Fig.3.

6(5).   Furcula absent................................... Knowltonella
        Furcula present............................................. 7

7(6).   Mandible with 1 or no apical teeth or reduced teeth facing
          forward (fig.4a&b)........................................ 8
        Mandible with 3 or more apical teeth facing inward (fig.4c&d).
           ......................................................... 9


Fig.4.

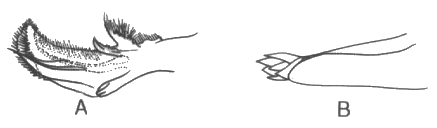

8(7).   Maxilla complex with ciliate lamella (fig.5a)... Barbagastrura
        Maxilla without ciliate lamella (fig.5b)........ Stenogastrura


Fig.5.

9(7).   Labium with only acuminate or truncate setae............... 10
        Labium with trumpet shaped apical setae (fig.6)...............
           ............................................ Gnathogastrura


Fig.6.

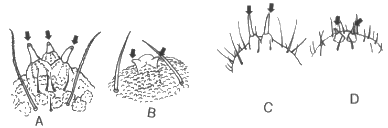

10(9).  Anal spines 2 (fig.7b-d)................................... 11
        Anal spines 3 (fig.7a).......................... Triacanthella 1


Fig.7.

11(10). Anal spines small or large, arising from separate papillae
          (fig.7c-d)............................................... 12
        Anal spines very small and arising from single papilla
          (fig.7b)........................................... Franzura

12(11). Unguiculus 1/7th or more as long as inner unguis........... 13
        Unguiculus less than 1/9th as long as inner unguis......... 17

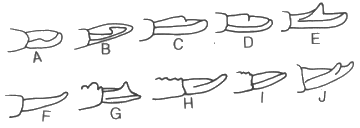

13(12). Mucro spoon shaped with lateral lobe or spine (fig.8a-e)... 14
        Mucro varied but never spoon shaped (fig.8f-j)............. 15


Fig.8.

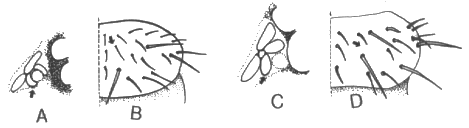

14(13). Postantennal organ large with posterior arms usually curved
          around boss (fig.9a); seta m2 present on thoracic segment 2
          (fig.9b)...................................... Mitchellania
        Postantennal organ posterior arms large, not curved around
          boss (fig.9c); seta m2 absent on thoracic segment 2
          (fig.9d).................................... Ceratophysella


Fig.9.

15(13). Postantennal organ absent........................ Celegastrura
        Postantennal organ present................................. 16

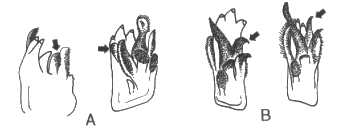

16(15). Maxilla with lamella 4 hooked, strong and reaching beyond tip
          of lamella 50 (fig.10b)........................ Hypogastrura
        Maxilla with lamella 4 rounded, shorter than and hidden by
          lamella 5 (fig.10a)................................ Mucrella 2


Fig.10.

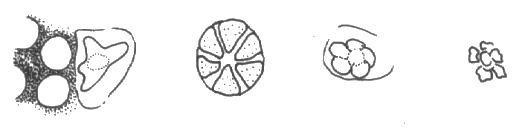

17(12). Postantennal organ with weak lobes (fig.11a&b)..... Schoettella
        Postantennal organ without lobes (fig.11c)..... Gomphiocephalus


Fig.11.

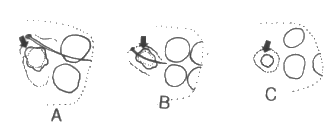

18(1).  Postantennal organ absent.................................. 19
        Postantennal organ present (fig.12)........................ 26


Fig.12.

19(18). Apical organ of third antennal segment with 2 or no guard
          papillae................................................. 20
        Apical organ of third antennal segment with 4 or 5 guard
          papillae (fig.13)................................ Acherongia


Fig.13.

20(19). Eyes 2 + 2 or fewer per side............................... 21
        Eyes 4 + 4 - 5 + 5 per side................................ 24

21(20). Eyes 2 + 2...................................... Acheroxenylla
        Eyes absent................................................ 22

22(21). Furcula & tenaculum often reduced but present (fig.14)..... 23
        Furcula absent.................................. Acherontiella


Fig.14.

23(22). Mucro fused to dens (fig.14b) or absent.......... Acherontides
        Mucro separate from dens (fig.14a).......... Pseudacherontides

24(20). Mandible short without long apex, apical teeth large
          (fig.15a)........................................... Xenylla
        Mandible with long thin apex and small apical teeth (fig.15b).
           ........................................................ 25


Fig.15.

25(24). Fourth antennal segment with 4 heavy blunt setae (fig.16a)....
           ............................................... Paraxenylla
        Fourth antennal segment with 5 heavy blunt setae (fig.16b)....
           ............................................... Thibaudylla


Fig.16.

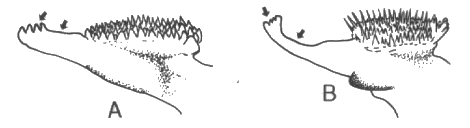

26(18). Mandible normal (fig.17c).................................. 27
        Mandible reduced (fig.17a&b).................... Microgastrura


Fig.17.

27(26). Furcula reduced to single mass, paired rudiments (fig.18b) or
          absent................................................... 28
        Furcula with clear manubrium and dens (fig.18a)............ 31


Fig.18.

28(27). Eyes absent................................................ 29
        Eyes present..................................... Parawillemia

29(28). Claw with strong inner teeth (fig.19a)............... Tafallia
        Claw without inner teeth................................... 30


Fig.19.

30(29). Furcula completely absent............................ Willemia 3
        Furcula vestigial (fig.19b).................... Willemgastrura

31(27). Unguis 6 or less times as long as basal width.............. 32
        Unguis 8 or more times as long as basal width (fig.20)........
           ............................................ Ongulogastrura


Fig.20.

32(31). Anal horns absent.......................................... 33
        Anal horns present......................................... 35

33(32). Unguiculus absent.............................. Austrogastrura

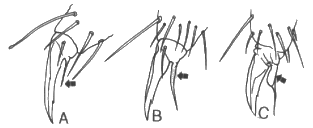

        Unguiculus sometimes reduced (fig.21a&b) but present....... 34


Fig.21.

34(33). Unguiculus large, with clear basal lamella (fig.21c)..........
           ............................................ Jacutogastrura
        Unguiculus without basal lamella (fig.21a&b)..................
           .............................................. Mesogastrura 4

35(32). Base of unguiculus lamellate (fig.21c)..................... 36
        Base of unguiculus not lamellate (fig.21a&b)............... 39

36(35). Dens with 6 or fewer dorsal setae.......................... 37
        Dens with 7 dorsal setae................................... 38

37(36). Mucro absent or with lamella and/or lateral tooth. Schaefferia
        Mucro slender tapered, without lamella or tooth. Taurogastrura

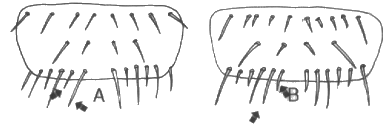

38(36). Seta p2 on abdomen 4 larger than p1 (fig.22b).. Typhlogastrura
        Seta p2 on abdomen 4 smaller than p1 (fig.22a). Bonetogastrura


Fig.22.

39(35). Mucro fused to dens (fig.23a)................. Xenyllogastrura
        Mucro separate from dens (fig.23b&c)....................... 40


Fig.23.

40(39). Eyes 2 + 2 or fewer.............................. Mesachorutes
        Eyes 4 + 4 - 6 + 6......................................... 41

41(40). Eyes 4 + 4....................................... Denigastrura
        Eyes 5 + 5 or 6 + 6............................... Orogastrura


Endnotes

1 Rare individual specimens of other genera may have 3 anal horns.

2 Proxenyllodes will be keyed out here (ecomorphic form). Proxenyllodes is a senior but subjective synonym of Mucrella and is treated here as a nomen dubium.

3 Xenyllogastrura reducta will key out here (see Fjellberg 1991).

4 Mesachorutes tiliophilus will key out here. It also shares with this genus the absence of discrete lobes of the PAO which separates other members of Mesachorutes from Mesogastrura.


Differential diagnoses

Acherongia
Apical organ of third antennal segment with 4 or 5 guard papillae (fig.13). Head with fewer than 8 + 8 eyes. Postantennal organ absent.

Acherontides
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 2 + 2 or fewer per side. Eyes absent. Furcula & tenaculum often reduced but present (fig.14). Head with fewer than 8 + 8 eyes. Mucro fused to dens (fig.14b) or absent. Postantennal organ absent.

Acherontiella
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 2 + 2 or fewer per side. Eyes absent. Furcula absent. Head with fewer than 8 + 8 eyes. Postantennal organ absent.

Acheroxenylla
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 2 + 2 or fewer per side. Eyes 2 + 2. Head with fewer than 8 + 8 eyes. Postantennal organ absent.

Austrogastrura
Anal horns absent. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Unguiculus absent. Unguis 6 or less times as long as basal width.

Barbagastrura
Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Mandible with 1 or no apical teeth or reduced teeth facing forward (fig.4a&b). Maxilla complex with ciliate lamella (fig.5a).

Biscoia
Apical organ of third antennal segment with 5 papillae (fig.1). Head with 8 + 8 eyes.

Bonetogastrura
Anal horns present. Base of unguiculus lamellate (fig.21c). Dens with 7 dorsal setae. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Seta p2 on abdomen 4 smaller than p1 (fig.22a). Unguis 6 or less times as long as basal width.

Celegastrura
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Mucro varied but never spoon shaped (fig.8f-j). Postantennal organ absent. Unguiculus 1/7th or more as long as inner unguis.

Ceratophysella
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Mucro spoon shaped with lateral lobe or spine (fig.8a-e). Postantennal organ posterior arms large, not curved around boss (fig.9c). Seta m2 absent on thoracic segment 2 (fig.9d). Unguiculus 1/7th or more as long as inner unguis.

Choreutinula
Anal spines absent (fig.2a). Apical organ of third antennal segment with 2 or no papillae. First thoracic segment with 3 + 3 setae. Head with 8 + 8 eyes.

Denigastrura
Anal horns present. Base of unguiculus not lamellate (fig.21a&b). Eyes 4 + 4 – 6 + 6. Eyes 4 + 4. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro separate from dens (fig.23b&c). Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.

Ecuadogastrura
Anal spines absent (fig.2a). Apical organ of third antennal segment with 2 or no papillae. First thoracic segment with 1 + 1 setae. Head with 8 + 8 eyes.

Franzura
Anal spines very small and arising from single papilla (fig.7b). Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d).

Gnathogastrura
Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with trumpet shaped apical setae (fig.6). Mandible with 3 or more apical teeth facing inward (fig.4c&d).

Gomphiocephalus
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Postantennal organ without lobes (fig.11c). Unguiculus less than 1/9th as long as inner unguis.

Hypogastrura
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Maxilla with lamella 4 hooked, strong and reaching beyond tip of lamella 50 (fig.10b). Mucro varied but never spoon shaped (fig.8f-j). Postantennal organ present. Unguiculus 1/7th or more as long as inner unguis.

Jacutogastrura
Anal horns absent. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Unguiculus sometimes reduced (fig.21a&b) but present. Unguiculus large, with clear basal lamella (fig.21c). Unguis 6 or less times as long as basal width.

Knowltonella
Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Apical organ of third antennal segment with 2 or no papillae. Furcula absent. Head with 8 + 8 eyes.

Mesachorutes
Anal horns present. Base of unguiculus not lamellate (fig.21a&b). Eyes 2 + 2 or fewer. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro separate from dens (fig.23b&c). Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.

Mesogastrura 4
Anal horns absent. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Unguiculus sometimes reduced (fig.21a&b) but present. Unguiculus without basal lamella (fig.21a&b). Unguis 6 or less times as long as basal width.

Microgastrura
Head with fewer than 8 + 8 eyes. Mandible reduced (fig.17a&b). Postantennal organ present (fig.12).

Mitchellania
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Mucro spoon shaped with lateral lobe or spine (fig.8a-e). Postantennal organ large with posterior arms usually curved around boss (fig.9a). Seta m2 present on thoracic segment 2 (fig.9b). Unguiculus 1/7th or more as long as inner unguis.

Mucrella 2
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Maxilla with lamella 4 rounded, shorter than and hidden by lamella 5 (fig.10a). Mucro varied but never spoon shaped (fig.8f-j). Postantennal organ present. Unguiculus 1/7th or more as long as inner unguis.

Octoacanthella
Anal spines present, at least small (fig.2b). Anal spines 8 (fig.3). Apical organ of third antennal segment with 2 or no papillae. Head with 8 + 8 eyes.

Ongulogastrura
Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Unguis 8 or more times as long as basal width (fig.20).

Orogastrura
Anal horns present. Base of unguiculus not lamellate (fig.21a&b). Eyes 4 + 4 – 6 + 6. Eyes 5 + 5 or 6 + 6. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro separate from dens (fig.23b&c). Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.

Parawillemia
Eyes present. Furcula reduced to single mass, paired rudiments (fig.18b) or absent. Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12).

Paraxenylla
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 4 + 4 – 5 + 5 per side. Fourth antennal segment with fig.4 heavy blunt setae (fig.16a). Head with fewer than 8 + 8 eyes. Mandible with long thin apex and small apical teeth (fig.15b). Postantennal organ absent.

Pseudacherontides
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 2 + 2 or fewer per side. Eyes absent. Furcula & tenaculum often reduced but present (fig.14). Head with fewer than 8 + 8 eyes. Mucro separate from dens (fig.14a). Postantennal organ absent.

Schaefferia
Anal horns present. Base of unguiculus lamellate (fig.21c). Dens with 6 or fewer dorsal setae. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro absent or with lamella and/or lateral tooth. Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.

Schoettella
Anal spines small or large, arising from separate papillae (fig.7c-d). Anal spines present, at least small (fig.2b). Anal spines fig.2 or 3. Anal spines 2 (fig.7b-d). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d). Postantennal organ with weak lobes (fig.11a&b). Unguiculus less than 1/9th as long as inner unguis.

Stenogastrura
Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Mandible with 1 or no apical teeth or reduced teeth facing forward (fig.4a&b). Maxilla without ciliate lamella (fig.5b).

Tafallia
Claw with strong inner teeth (fig.19a). Eyes absent. Furcula reduced to single mass, paired rudiments (fig.18b) or absent. Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12).

Taurogastrura
Anal horns present. Base of unguiculus lamellate (fig.21c). Dens with 6 or fewer dorsal setae. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro slender tapered, without lamella or tooth. Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.

Thibaudylla
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 4 + 4 – 5 + 5 per side. Fourth antennal segment with fig.5 heavy blunt setae (fig.16b). Head with fewer than 8 + 8 eyes. Mandible with long thin apex and small apical teeth (fig.15b). Postantennal organ absent.

Triacanthella 1
Anal spines present, at least small (fig.2b). Anal spines 2 or 3. Anal spines 3 (fig.7a). Apical organ of third antennal segment with 2 or no papillae. Furcula present. Head with 8 + 8 eyes. Labium with only acuminate or truncate setae. Mandible with 3 or more apical teeth facing inward (fig.4c&d).

Typhlogastrura
Anal horns present. Base of unguiculus lamellate (fig.21c). Dens with 7 dorsal setae. Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12). Seta p2 on abdomen 4 larger than p1 (fig.22b). Unguis 6 or less times as long as basal width.

Willemgastrura
Claw without inner teeth. Eyes absent. Furcula reduced to single mass, paired rudiments (fig.18b) or absent. Furcula vestigial (fig.19b). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12).

Willemia 3
Claw without inner teeth. Eyes absent. Furcula reduced to single mass, paired rudiments (fig.18b) or absent. Furcula completely absent. Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Postantennal organ present (fig.12).

Xenylla
Apical organ of third antennal segment with 2 or no guard papillae. Eyes 4 + 4 – 5 + 5 per side. Head with fewer than 8 + 8 eyes. Mandible short without long apex, apical teeth large (fig.15a). Postantennal organ absent.

Xenyllogastrura
Anal horns present. Base of unguiculus not lamellate (fig.21a&b). Furcula with clear manubrium and dens (fig.18a). Head with fewer than 8 + 8 eyes. Mandible normal (fig.17c). Mucro fused to dens (fig.23a). Postantennal organ present (fig.12). Unguis 6 or less times as long as basal width.


References
